Pengda
Speedy. Supreme. Succesful

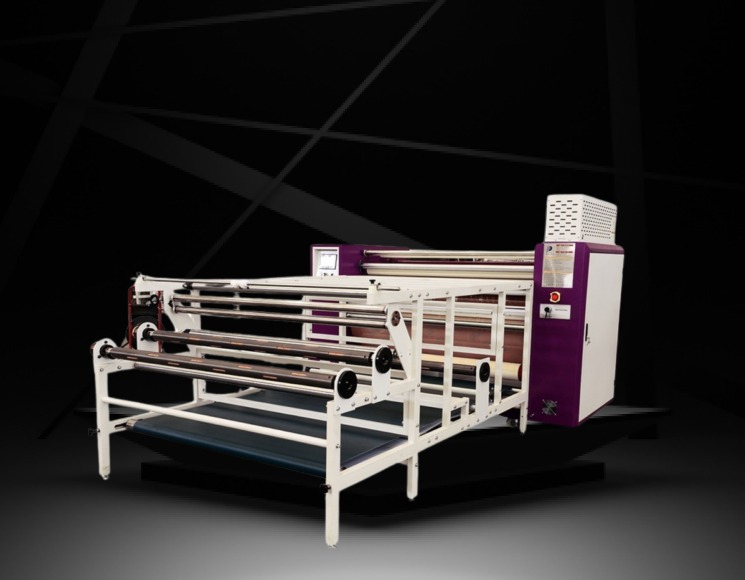

Pengda Technology is a multifunctional machine for Heat transfer or digital print transfer. It does both pieces and rolls that as well with minimal operators and high consistency. It is convenient with pre-cut pieces as well. This technology allows us to present you with an overall solution for all your digital printing needs.
Productivity
600mm : 120-180m/hour | 800mm : 180-300m/hour | 1000mm : 240-600m/hour
Advantages
Touch Panel to Set Timer to Start & Off the Machine
See Real Time Speed
Checkout Actual Paper Transfer Time
Speed 3000 to upto 15000 Meter Per Day
Technical Specifications
| Model | PD-1700XD-600 | PD-1700XD-800 | PD-1700XD-1000 |
| Power Configuration | Three Phase Four Wire 440V | Three Phase Four Wire 440V | Three Phase Four Wire 440V |
| Average Power Consumption | 30KW | 37KW | 50KW |
| Voltage | 42KW | 52KW | 71KW |
| Heating | Oil Heating | Oil Heating | Oil Heating |
| Drum Diameter | 600mm | 800mm | 1000mm |
| Printing Width | 1600mm | 1600mm | 1600mm |
| Net Weight | 2300KG | 3100KG | 4500KG |
| Machine Size | 2750mm(Length) 1450mm(Width) 1750mm (Height) | 2750mm(Length) 1550mm(Width) 2000mm (Height) | 2750mm(Length) 1750mm(Width) 2250mm (Height) |
